XIANGZI
Welded Wire Mesh Fence (3D)
V-bend welded panel kits for rigid, tidy perimeters.
Panels + posts + clamps + caps · gates optional
HDG or pre-galv + powder coat（green/black/grey）
Mesh 50×200 mm · wire Ø4.0–5.0 mm · height 1.2–2.4 m
Drawings & BOM included · fast delivery
XIANGZI
Welded Wire Mesh Fence(3D)
Rigid V-bend panel system for residential, commercial and public sites.
Kits: panels, posts, clamps；swing/slide gates optional
Finishes: HDG (ISO 1461) or powder-coated (green/black/grey)
Typical: mesh 50×200 mm；wire Ø4.0–5.0 mm；heights 1.2–2.4 m
Drawings & BOM included；clean look, quick installation
If you complete the form below we will contact you as soon as possible.
XIANGZI
Welded Wire Mesh Fence(3D)
Rigid V-bend panel system for residential, commercial and public sites.
Kits: panels, posts, clamps；swing/slide gates optional
Finishes: HDG (ISO 1461) or powder-coated (green/black/grey)
Typical: mesh 50×200 mm；wire Ø4.0–5.0 mm；heights 1.2–2.4 m
Drawings & BOM included；clean look, quick installation
Welded Mesh Panel Fencing
3D Curvy, 358 High-Security, Double Wire and BRC roll-top panels — HDG or PVC coated. Kits ship with posts, rails & fittings; heights 1.2–6 m.
Welded Wire Mesh Fence (3D) — Curvy Panel Systems
V-bend welded panels with posts, clamps and gates; sized to your layout. HDG or powder-coated finish; kits with drawings & BOM; fast delivery.
01
System & Design
3D V-bends for rigidity; straight or spike-top options.
Common mesh 50×200 mm; panel widths 2.5 / 3.0 m; heights 1.2–2.4 m (others on request).
Wire Ø4.0–5.0 mm (core before coating).
Posts SHS 60×60 / RHS 60×80 / Ø48–60 round; caps included.
Fixings: metal/PP clamps with anti-theft bolts; top/bottom rails optional.
02
Scale & Logistics
Automated welding lines; 7 factories with global warehouses.
Stocked sizes; OEM sizing and matched gates available.
Packing: panels palletized, posts bundled, clamps boxed; kits labeled per run/section.
Shipping terms: FOB / CFR / CIF / DDP; export documents prepared.
Lead time: stock 3–5 days; regular 7–15 days.
03
Manufacturing & Capacity

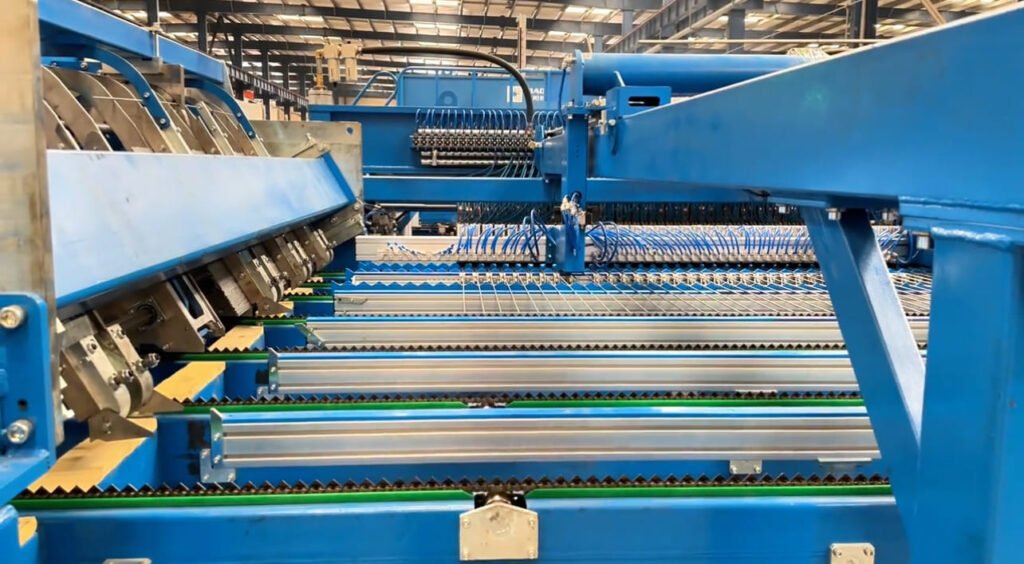

Multiple automated welded-mesh lines with 3D bending; stable panel geometry and neat V-beads.
In-house post fabrication (square/round), clamp bars, base plates; swing/slide gates available.
Finishes: hot-dip galvanizing (ISO 1461) or powder coating (RAL) over galvanized/Zn-Al substrate.
QC on wire gauge, weld strength, bend accuracy, diagonals, coating thickness — full traceability.
OEM/ODM accepted: custom sizes, colors, and hardware; labels, BOM and drawings per kit.
Welded Wire Mesh Fence (3D) – Curvy Panel Systems
V-bend welded panels with posts, clamps and gates, customized to your layout.
HDG or powder-coated finish, complete kits with drawings & BOM, fast delivery.
System & Design
Mesh 50×200 mm; width 2.5/3.0 m; height 1.2–2.4 m
Wire Ø4.0–5.0 mm (before coating)
Posts 60×60 / 60×80 / Ø48–60; anti-theft clamps; rails optional
Scale & Logistics
7 factories; global warehouses
Stock 3–5 days; regular 7–15 days
Packing: panels palletized, posts bundled; FOB/CFR/CIF/DDP
Manufacturing & QC
Automated lines with 3D bending
Finishes: HDG (ISO 1461) or RAL powder coat
Full traceability; OEM/ODM accepted

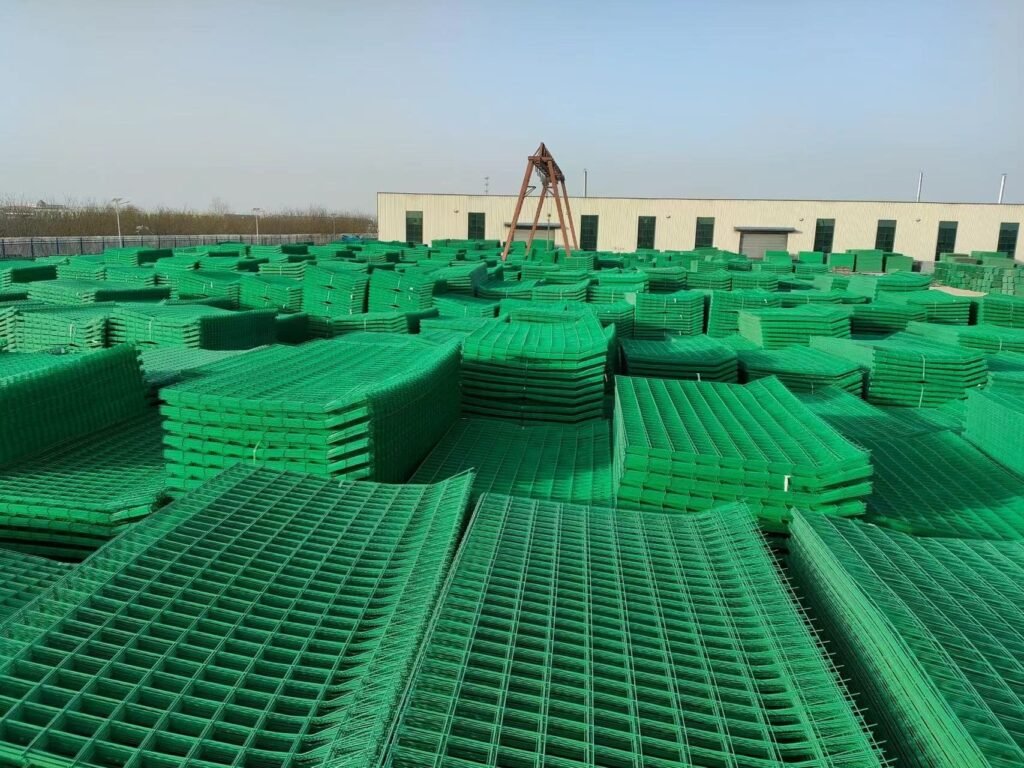

Ready Stock
Year-round inventory in common specs & coatings
7 Factory Bases
Full-process production, self-owned plants
Global Logistics
FOB/CFR/CIF/DDP with 3PL partners
100+ Countries
Long-term partners worldwide
What our customers say
Hear from contractors and EPC partners who use XIANGZI gabion baskets and mattresses for riverbank and slope protection.
Panels were straight and stiff, the V-folds gave good rigidity, and the powder coat finish was clean. The crew set posts and clipped panels quickly—perfect for our school perimeter.
Jordan Smith
We ordered 3D welded mesh with gates. XIANGZI matched the heights and slope changes in the drawings, and the kit arrived labeled by run and span, which saved layout time on site.
Li Song
Hot-dip galvanizing plus powder coating held up well through a salty, windy season. Welds were consistent and there was no coating flake at the folds or cut edges.
Casey Williams
Export documents were complete and accurate. Palletized packs were strapped and film-wrapped, panels protected with corner guards, and everything cleared customs smoothly.
Riley Brown
We consolidated panels, posts, fittings and privacy slats in one shipment. The BOM matched exactly; installation guide was clear, so the team finished ahead of schedule.
Morgan Davis
Needed a clean look around our logistics yard. The 3D mesh panels aligned perfectly with 60×60 posts, clamps fit tight, and the sliding gate matched the fence line and color.
Cameron Miller
Cooperation Cases
What our customers say
Feedback from contractors and EPC partners using our rockfall protection systems — drapery netting, rockfall fences, debris-flow and avalanche barriers.
Panels were straight and stiff, the V-folds gave good rigidity, and the powder coat finish was clean. The crew set posts and clipped panels quickly—perfect for our school perimeter.
Jordan Smith
We ordered 3D welded mesh with gates. XIANGZI matched the heights and slope changes in the drawings, and the kit arrived labeled by run and span, which saved layout time on site.
Li Song
Hot-dip galvanizing plus powder coating held up well through a salty, windy season. Welds were consistent and there was no coating flake at the folds or cut edges.
Morgan Davis
Export documents were complete and accurate. Palletized packs were strapped and film-wrapped, panels protected with corner guards, and everything cleared customs smoothly.
Casey Williams
Frequently Asked Questions
Find answers to commonly asked questions about our products and services.
Which fence type should I choose—3D panels, double-wire, or 358?
3D (V-beam) panels balance strength, appearance and cost for perimeters, schools, parks and estates. Double-wire (two horizontal wires) is stiffer for higher-impact areas and sports. 358 (anti-climb) is for high-security sites where hand/foot holds must be minimized.
Do you keep stock for common systems?
Yes. We keep standard panels, posts and clamps in popular sizes and colors. Kits can be dispatched quickly; non-standard heights, colors or layouts are made to order.
What standards do your materials and coatings follow?
Low-carbon steel panels and posts with either hot-dip galvanizing or Zn-Al (Galfan), plus optional polyester powder top-coat in common RAL colors. Stainless fasteners are available on request.
What information do you need for a quotation or design?
Site layout or total length, fence height, any slopes/steps, ground type (soil, concrete, wall-top), gate quantity and clear widths, preferred coating/color, delivery location and required date.
How are 3D panels installed?
Posts are set in concrete or anchored on slabs; panels fix with clamp bars or metal clips. Corner/end/step posts use matching fittings. We supply drawings and an installation guide with the kit.
Can you supply gates and accessories with the fence?
Yes. Swing or sliding gates in matching mesh, plus posts, clamp bars/clips, caps, base plates, anchor bolts and privacy slats can be included in one shipment.
